Capabilities & profiles

Three distinct ideas shape every slot in hal0: capabilities describe what you want a slot to do, profiles describe the model-behavior tune it runs with, and the slot itself describes where it runs and how big its context window is. That last split is new in v1.0 — profiles used to carry hardware intent too. Getting the boundary right matters, because it’s now enforced, not just a naming convention.

Capabilities: what a slot does

A capability is an overlay the dashboard uses to group related slots under one operator-friendly idea. Rather than make you hand-configure each underlying slot, you pick a capability and its child, and hal0 reconciles the real slot for you. The capability groups are:

Capability	Children → underlying slot
embed	embed → embed, rerank → rerank
voice	stt → stt, tts → tts
img	img → img
vision	vision → vision

Chat is deliberately not a capability group — it lives in the dedicated chat slot and is configured directly, not through the capability overlay.

The selected capabilities are stored in capabilities.toml. When you apply a change, the orchestrator computes one atomic change set across both capabilities.toml and the affected slot TOML — they’re written together so the two can never drift mid-apply — and only then drives the slot lifecycle: turning a capability on loads its slot, turning it off unloads it, and changing the model or device swaps it. On first boot, hal0 seeds capabilities.toml from whatever the slots already declare, so the overlay reflects reality immediately.

Note

The capability layer is a convenience, not a separate runtime. Underneath, every capability resolves to an ordinary slot that the SlotManager runs as a podman container.

Profiles: how a slot is tuned

A profile is a reusable, device-agnostic tune template. It bundles model-behavior flags — sampler settings, KV-cache type and quantization, batch/ubatch size, reasoning mode, jinja/chat-template behavior — and nothing about hardware. As of v1.0, a profile carries no container image and no placement information at all: no device, no GPU index, no thread count, no -c/--ctx-size (that flag is on hal0’s own managed-args denylist and can never appear in a profile’s flags). All of that lives on the slot.

This is a genuine v1.0 change, not a renaming exercise: pre-1.0 profiles were identity-bound to a backend (rocm, vulkan, cuda) and carried an image. The 1.0 seed catalog is organized by workload instead, so the same profile works regardless of which device a slot targets:

Profile	Purpose
chat	Minimal generic chat — fallback for unknown models
chat-long-context	Long-context chat variant (~128K ctx)
dense	Generic dense workload (~128K ctx); family quirks live in a dedicated variant, e.g. chadrock-dense
moe	Generic MoE workload (~32K ctx); family quirks in e.g. chadrock-moe
embedding	Pooled embeddings (--embedding, wide ubatch)
reranking	Reranking (--reranking) — always a separate instance from embedding
cpu-chat	CPU-safe chat
flm	FLM inference on the NPU (chat/embed/STT)
kokoro	Text-to-speech (Kokoro), CPU
qwen3-tts	Text-to-speech (Qwen3-TTS), GPU
moonshine	Speech-to-text (Moonshine), CPU
comfyui	Image generation (ComfyUI)
brain	The hal0-brain steward workload (small tool-routing model)
chadrock-dense / chadrock-moe	Family-tuned recipes for specific dense/MoE model cards (ROCmFP4, MTP, mmproj)
thinking	Reasoning-ON workload for reasoning-capable models
coding	Code-gen tuned workload

embedding and reranking are deliberately separate profiles/slots rather than one server handling both — combining --embedding and --reranking on a single llama-server instance produces all-zero scores.

Seed profiles are virtual

Seed profiles live in code, not in /etc/hal0/profiles.toml. On every load, hal0 overlays the code definition of each seed name over whatever is on disk — the code definition always wins, even over a stale on-disk copy — and if profiles.toml is absent entirely, the seeds are still returned in memory, so the profile catalog is never empty. Saving the catalog back out strips every seed-named key before writing, so a seed can never accidentally get pinned to a stale on-disk copy.

Seed profiles are immutable through the API too — updating or deleting a profile whose name matches a seed is rejected outright. The only way to customise one is to clone it: the dashboard’s Profiles tab turns “Edit” into “Edit a copy” for a seed, forking a <seed>-custom profile (with cloned_from recording the original) that you’re then free to tune; Delete stays disabled on the seed itself.

Each profile is also classified into a runtime family (llama-server, FLM, Kokoro, Qwen3-TTS, or ComfyUI) that determines which slot types it can serve, and profiles are portable: any profile can be exported to a self-contained, checksummed .hal0profile.json envelope and imported on another host — the same sharing model stacks use.

Where hardware placement actually lives now: the slot

This is the section that changed most in v1.0, so it’s worth stating precisely, since a plausible-but-wrong reading — “profiles are entirely inert” — undersells one real nuance below.

A slot carries its own device field — gpu-rocm, gpu-vulkan, gpu-cuda, cpu, or npu — plus gpu_index, n_gpu_layers, threads, and binary (which selects a runner/container image family; image_pin is the escape hatch for a full image override). This “hardware grid” is what the slot owns exclusively, validated at config-load time so a typo fails fast. Legacy configs that still set the old overloaded backend field are auto-promoted to device on load, so old slot TOMLs keep working.

A ProfileConfig still carries two optional fields, device_class and backend, for back-compat — but as of v1.0 they are inert match-only fit hints, not a source of runtime configuration:

• None of the 17 shipped seed profiles set either field — they’re device-agnostic by construction.
• When set (on a hand-authored or pre-1.0 profile), device_class is consulted only as a fit-check signal (surfacing a profile.device_class_mismatch warning if it disagrees with the slot’s actual device) and backend is consulted only as a fallback when a slot has no device set at all — the normal 1.0 case (a slot with a real device) always overrides both fields with device_to_backend(slot.device).
• GPU device-node passthrough — which physical GPU nodes actually get mapped into the container — is decided from the slot’s device alone, not from a profile’s fields. Earlier code paths that still read the profile here have been fixed; a CPU-targeted slot no longer requests real GPU device nodes just because its profile happened to carry a stale device_class.

Tip

If you’re auditing a config: the slot’s device is authoritative. A profile’s device_class/backend, if present at all, only matter when the slot itself has nothing set — treat them as legacy fallback plumbing, not as something you’d deliberately configure on a new install.

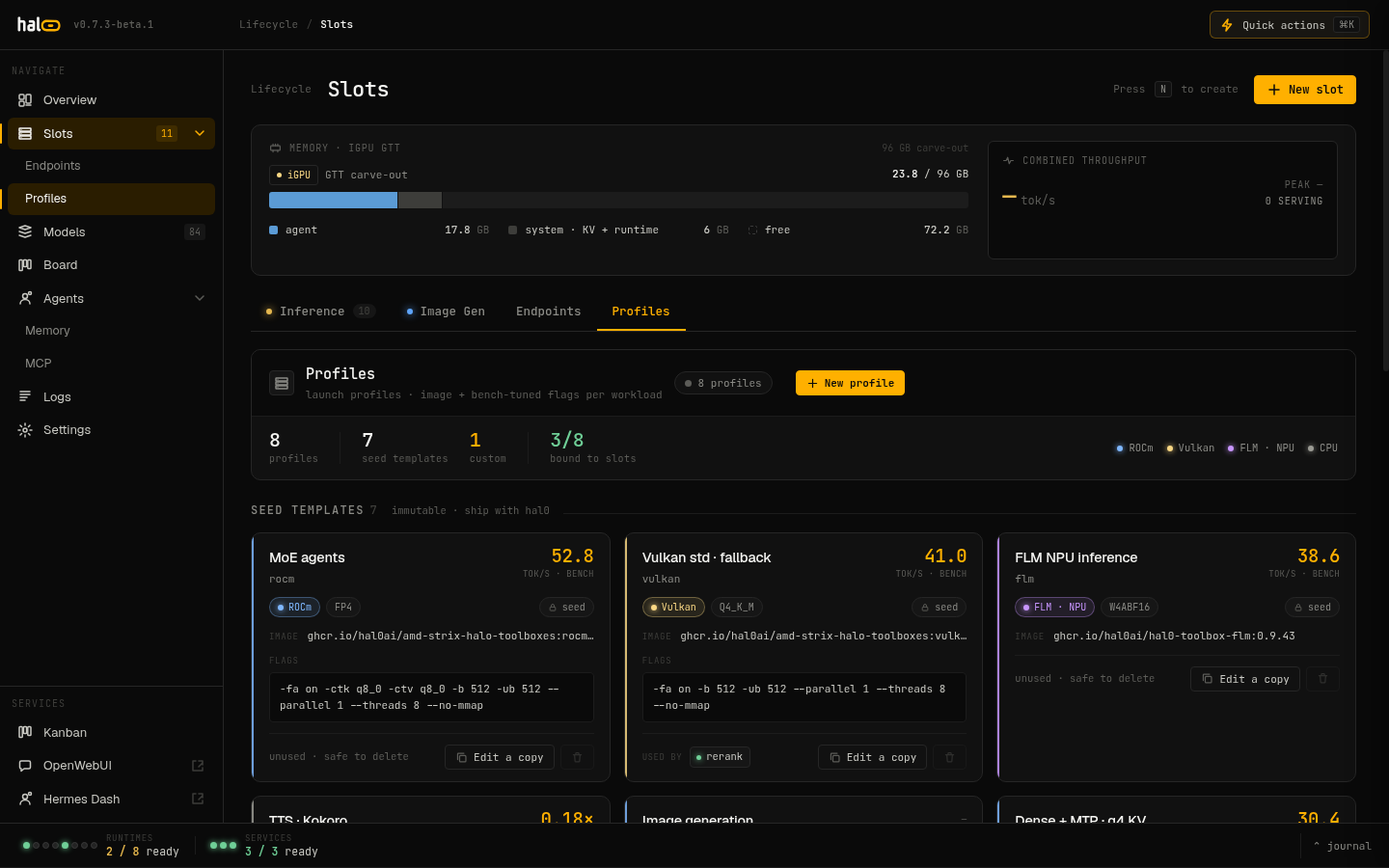

The Profiles tab — seed profile cards with bench metrics, intent labels, and the clone affordance for creating custom profiles.

Flag precedence: how a launch command is assembled

A container slot’s actual launch command is built from several layers, concatenated in a fixed order and then deduplicated last-wins per flag (short and long spellings of the same flag — -b/--batch-size, -ngl/--n-gpu-layers, -ctk/--cache-type-k, and friends — are treated as the same key; --lora, --draft-model, and --override-kv are appended, never deduped, since llama-server treats repeats of those additively):

1. base — --host/--port/--model/--alias/--ctx-size, always present. Context size here is the model’s resolved window, capped by the slot’s own ceiling — see Slots.
2. profile — the profile’s flags.
3. model defaults — the registry model’s defaults.extra_args (plus -ngl from the slot, not the model), with the model’s family default (next section) prepended.
4. chat template / mmproj — --chat-template-file, --mmproj, resolved from the model.
5. slot’s own hardware grid — device/n_gpu_layers/threads, always slot-owned, always applied here.
6. [server].extra_args — hand-authored on the slot itself, always wins last.

The slot Edit drawer’s resolved command panel shows the fully assembled argv with a per-flag provenance badge, backed by GET /api/slots/{name}/resolved — the same resolver drives both this preview and the actual launch, so what you see is what runs.

FAMILY_DEFAULTS — pinning quirky model architectures

Some model architectures need flags no profile should reasonably have to know about. FAMILY_DEFAULTS is a small, code-only table — virtual like the seed profiles, never persisted — keyed on model family (detected from a token scan of the model’s id/filename) that layers architecture-specific overrides into the model-defaults layer above. Today it has one tenant:

gemma → -ctk f16 -ctv f16 --cache-reuse 0

Gemma’s interleaved sliding-window attention regresses under quantized KV cache, so any Gemma model on any q8-KV profile is pinned back to f16 KV with cache-reuse disabled automatically — no per-slot opt-in needed.

MTP: a model × slot decision

MTP (multi-token prediction / speculative decoding) is a model capability as of v1.0, not something a profile turns on. It’s resolved from two independent signals:

1. Model eligibility — a model is MTP-eligible if the registry mtp tag is set, or an MTP marker appears in its id/filename as a delimited token (e.g. ...-mtp-...), gated by the launching runner’s declared MTP support.
2. Slot override — a slot’s mtp field is a tri-state: true forces MTP on, false forces it off, and unset (Auto) defers to model eligibility.

A profile’s own mtp field still exists on disk for API/round-trip back-compat, but it is informational only — it is not read by resolve_profile_flags() or the launch path at all. Two seed profiles happen to be tuned for MTP-capable model families (chadrock-dense, chadrock-moe), but that’s a property of what model you’d pair with them, not something the profile itself switches on.

Resolution: an explicit slot override always wins. Under Auto, MTP is enabled only when the model is eligible. Forcing MTP on a model with no MTP layers at all makes llama-server refuse to start, so only use the override for models you know are genuinely MTP-capable.

Tip

When MTP is effectively on, hal0 merges a tuned speculative-decoding flag bundle into the launch command as defaults only — any --spec-draft-* flag set explicitly upstream of it wins over the bundle. The bundle’s draft device tracks the slot’s own device rather than a hardcoded value.

In the dashboard, the slot Edit drawer (and each stack row) exposes this as a three-way Auto/On/Off control with a live “Auto · active/inactive” hint.

The NPU trio

The AMD XDNA NPU is driven by FastFlowLM (FLM), and one detail shapes how hal0 uses it: a single flm serve process serves three modalities at once — chat, speech-to-text, and embeddings. hal0 calls this the NPU trio.

There is one containerized NPU slot. Its chat role routes through the slot’s upstream like any other slot. The other two modalities ride as shadow slots — stt and embed — whose requests are posted straight to the same container’s port when their slot records are enabled. There’s no second process and no separate model server: the three endpoints are the same FLM process answering on one static port.

Because the XDNA hardware context admits only one NPU LLM at a time, hal0 enforces NPU exclusivity: you can’t enable a second device=npu chat slot. When the NPU container isn’t dispatchable, trio requests degrade with a clear npu.trio_unavailable error rather than failing obscurely.
